AsteRx RB3 CLAS GNSS Receiver

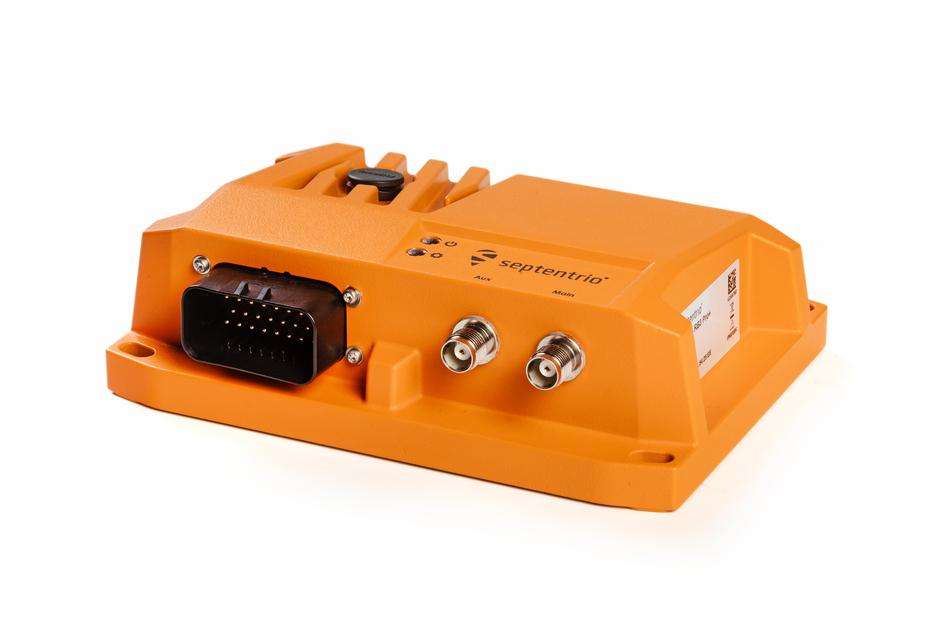

SEPTENTRIO AsteRx RB3Pro CLAS

Product Information

Septentrio’s AsteRx RB3 CLAS high-accuracy GNSS positioning and heading receiver is built to operate reliably in the harshest environments, with exceptional resistance to extreme temperatures, corrosion, shock, and vibration. Designed for maximum flexibility, it delivers uncompromising performance across demanding applications.

The receiver also provides the convenience of plug-and-play sub-decimetre positioning accuracy through the integrated PPP-RTK correction service from Japan’s Quasi-Zenith Satellite System (QZSS) Centimetre Level Augmentation Service (CLAS).

Reliable positioning in demanding environments

Combining an ultra-rugged housing with advanced multi-frequency tracking and GNSS+ algorithms, the AsteRx RB3 CLAS is ideally suited for applications requiring precise positioning in chemically aggressive environments, severe temperatures, and high mechanical stress. Its high update rate and low-latency output enable fast feedback during movement and rotation, ensuring responsive and accurate operation.

Precise and dependable heading

With integrated dual-antenna capability, the AsteRx RB3 CLAS delivers accurate, reliable, and position-independent heading alongside centimetre-level RTK performance. GNSS-based heading provides exceptional accuracy in both static and dynamic conditions, removing dependence on vehicle dynamics or magnetic sensors.

Seamless integration

The AsteRx RB3 CLAS integrates easily into a wide range of systems through fully documented interfaces, commands, and data messages. Septentrio’s open interfaces and software tools, including WebUI and RxTools, simplify integration, configuration, and receiver management.

The Chronos difference

Contact our team who will be happy to discuss the best Septentrio solution for your application.



Key Features

  • Rugged, enclosed GNSS positioning and heading receiver with CLAS corrections
  • Rugged and durable IP69K GNSS receiver
  • High-accuracy RTK positioning with all-in-view, GNSS multi-frequency satellite tracking
  • Sub-degree GNSS heading & pitch or heading & roll
  • Flexibility to be used either as rover or as base station
  • Update rate up to 100 Hz
  • GNSS+ Algorithm Suite ensure reliable performance in difficult environments including LOCK+ technology allowing robust satellite tracking under heavy vibrations and shocks
  • Fast and easy integration with the intuitive Web

Datasheets

Septentrio-AsteRx-RB3-CLAS.pdf
